Emne: OP300-EPDM
Documents and PDF files
OP300-EPDM (datablad).pdf (681.19 KB)
3D drawings

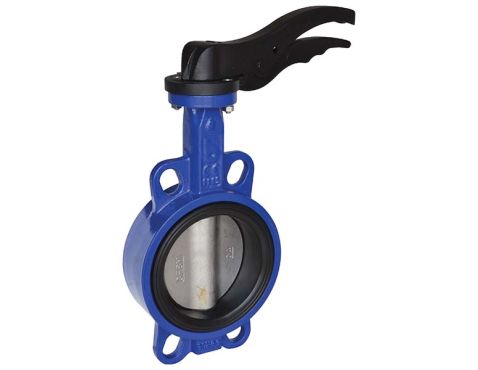

Butterfly Valve DI/316/E DN200
SKU: OP300-200-E
Out of stock
ETA:
23-09-2025
Specifications
| Dimension DN 1 : | 200 |
| ISO top : | ISO 5211 F10 |
| Spindle mm : | 17 |
| Build length : | 60 |
| Material : | Cast iron EN-GJS-400-15 |
| Gasket : | EPDM |
| Surface treatment : | Epoxy coating |
| Material spindle : | AISI 420 |
| Material disc : | AISI 316 |
| Valve function : | Shut-off |
| Flange type : | Wafer |
| Activation method : | Handle |
| Max operating pressure (bar) : | 16 |
| Min temperature : | -10°C |
| Max temperature : | +120°C |
| Unit : | Pcs |
| Weight : | 15.0000 |
| Country of origin : | Italy |
| Customs tariff : | 8481809990 |
