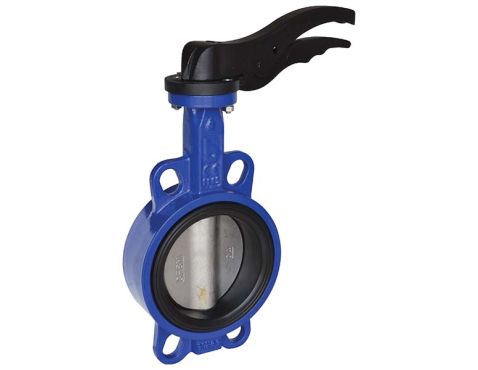

Butterfly Valve DS/316/E DN250
Emne: OP300-EPDM
  • OP300-250-E

Documents and PDF files


3D drawings

Butterfly Valve DS/316/E DN250

SKU: OP300-250-E
In stock (1)
Specifications
Dimension DN 1 : 250
ISO top : ISO 5211 F12
Spindle mm : 27
Build length : 68
Material : Cast iron EN-GJS-400-15
Gasket : EPDM
Surface treatment : Epoxy coating
Material spindle : AISI 420
Material disc : AISI 316
Valve function : Shut-off
Flange type : Wafer
Activation method : Handle
Max operating pressure (bar) : 16
Min temperature : -10°C
Max temperature : +120°C
Unit : Pcs
Weight : 23.5000
Country of origin : Italy
Customs tariff : 8481809990
