Emne: OP350-EPDM
Documents and PDF files
3D drawings

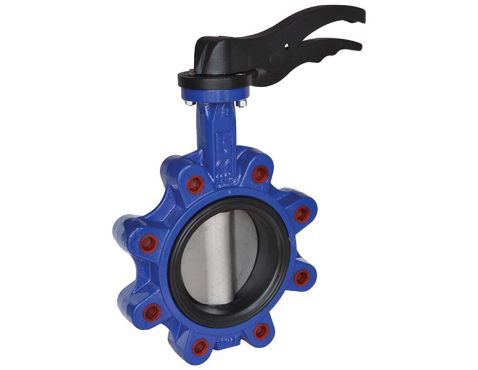

Butterfly valve LUG DN250
SKU: OP350-250-E
Out of stock
Specifications
| Dimension DN 1 : | 250 |
| ISO top : | ISO 5211 F12 |
| Spindle mm : | 27 |
| Build length : | 68 |
| Material : | Cast iron EN-GJS-400-15 |
| Gasket : | EPDM |
| Surface treatment : | Epoxy coating |
| Material spindle : | AISI 420 |
| Material disc : | AISI 316 |
| Valve function : | Shut-off |
| Flange type : | Lug |
| Activation method : | Handle |
| Max operating pressure (bar) : | 16 |
| Min temperature : | -10°C |
| Max temperature : | +120°C |
| Unit : | Pcs |
| Country of origin : | Italy |
| Customs tariff : | 8481809990 |
