OP10-65.STEP (14.41 MB)

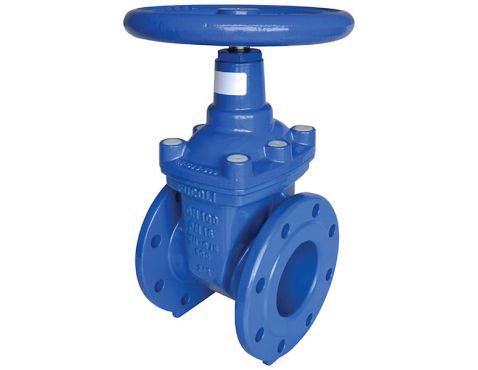

Gatevalve DI/316/E DN65
SKU: OP10-65-EH
In stock
Specifications
| Dimension DN 1 : | 65 |
| Media : | Drikning Water |
| Spindle mm : | 17,1 |
| Build length : | 170 |
| Material : | Cast iron EN-GJS-500-7 |
| Gasket : | EPDM |
| Surface treatment : | Epoxy coating |
| Material spindle : | AISI 316 |
| Material wedge : | EN-GJS-500-7 with EPDM |
| Valve function : | Shut-off |
| Flange type : | PN 10 |
| Activation method : | Handwheel |
| Bolthole Ø : | 19 |
| Number of bolt holes : | 4 |
| Max operating pressure (bar) : | 10 |
| Min temperature : | 0°C |
| Max temperature : | +70°C |
| Manufacturer : | Fucoli-Somepal |
| Unit : | Pcs |
| Country of origin : | Portugal |
| Customs tariff : | 8481809990 |
