Emne: OP10-NBR-H
Documents and PDF files
OP10-NBR (datablad).pdf (493.11 KB)
3D drawings

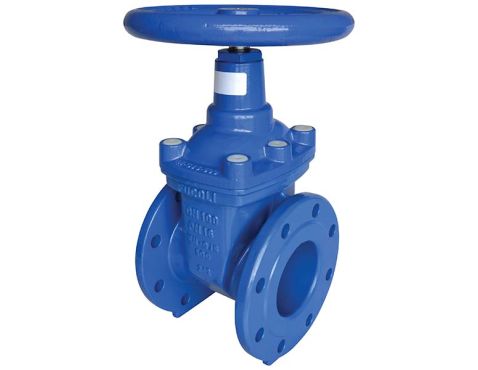

Gatevalve DI/316/N DN150
SKU: OP10-150-NH
In stock
Specifications
| Dimension DN 1 : | 150 |
| Media : | Sewage water |
| Spindle mm : | 19,1 |
| Build length : | 210 |
| Material : | Cast iron EN-GJS-500-7 |
| Gasket : | NBR |
| Surface treatment : | Epoxy coating |
| Material spindle : | AISI 316 |
| Material wedge : | EN-GJS-500-7 with NBR |
| Valve function : | Shut-off |
| Flange type : | EN 1092-2, PN10/16 |
| Activation method : | Handwheel |
| Bolthole Ø : | 23 |
| Number of bolt holes : | 8 |
| Max operating pressure (bar) : | 10 |
| Min temperature : | 0°C |
| Max temperature : | +70°C |
| Manufacturer : | Fucoli-Somepal |
| Unit : | Pcs |
| Country of origin : | Portugal |
| Customs tariff : | 8481809990 |
