B33EL (datablad).pdf (100.25 KB)

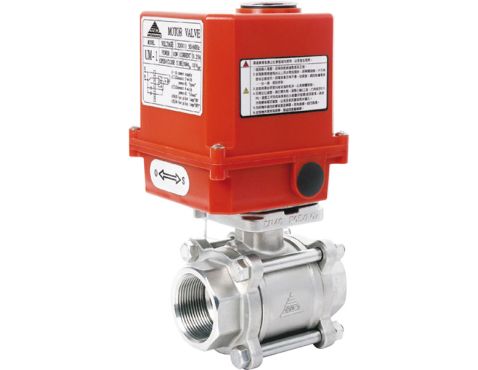

Ballvalve 316 w/230V act. 1"
SKU: B33-26EL
In stock (2)
Specifications
| Connection type : | Thread |
| Type : | Ball valve 230V |
| Material : | AISI 316 |
| Thread size 1 : | 1" |
| Gasket : | PTFE |
| Voltage : | 230V AC |
| Steering : | Double acting |
| Activation method : | Electrically controlled |
| Rated power : | 10 W |
| open/close time : | 10 sec |
| Ballvalve bore : | Full Bore |
| Ballvalve model : | 3-piece |
| Function : | 2-ways |
| Max operating pressure (bar) : | 69 |
| Min temperature : | -20°C |
| Max temperature : | +180°C |
| Standard : | EN 12516-3 |
| Thread type : | BSPP |
| Manufacturer : | Modentic |
| Manufacturer series : | EL-158 |
| Unit : | pcs |
| Weight : | 2.5330 |
| Country of origin : | Taiwan |
| Customs tariff : | 8481801190 |
