60000 (datablad).pdf (1.36 MB)

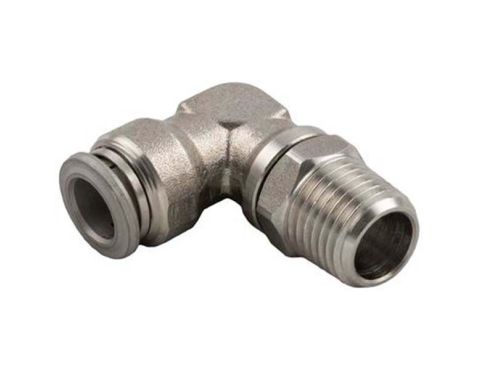

Swivel 90° 316 ø10×3/8"BSPT
SKU: B84-8
In stock (10)
Specifications
| Diameter 1 (mm) : | 10 |
| Thread size 1 : | 3/8" |
| Swivel : | Yes |
| Material : | AISI 316 |
| Gasket : | Viton |
| Degrees : | 90° |
| Wrench size : | 17 |
| Max operating pressure (bar) : | 20 |
| Vacuum : | -0,99 bar |
| Min temperature : | -15°C |
| Max temperature : | +190°C |
| Suitability : | Compressed air, fluids |
| Approved for food : | Yes |
| Unit : | pcs |
| Thread type : | BSPT |
| Manufacturer : | Aignep |
| Manufacturer series : | 60000 |
| Weight : | 0.0670 |
| Country of origin : | Italy |
| Customs tariff : | 73072210 |
